Sliding Acoustic Partition
Guangzhou MQ Acousitc Materials Co., Ltd is one of the most experienced manufacturers and suppliers of sliding acoustic partition in China. Welcome to buy sliding acoustic partition made in China here and get free sample from our factory. All customized products are with high quality and competitive price.

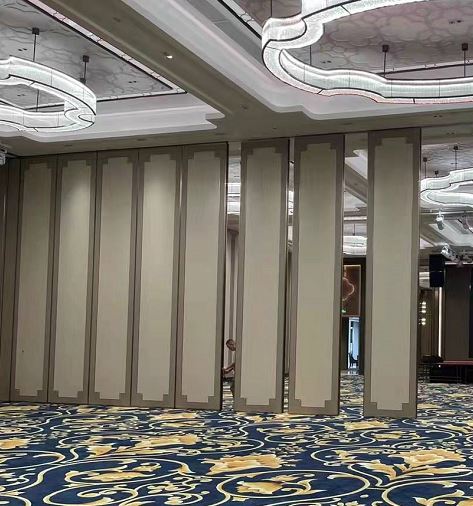

Movable partition is a movable wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The acoustic movable walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.
Specifications
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm
PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum
sectional material, durable NBR modified rubber for sealing |
Product Structure

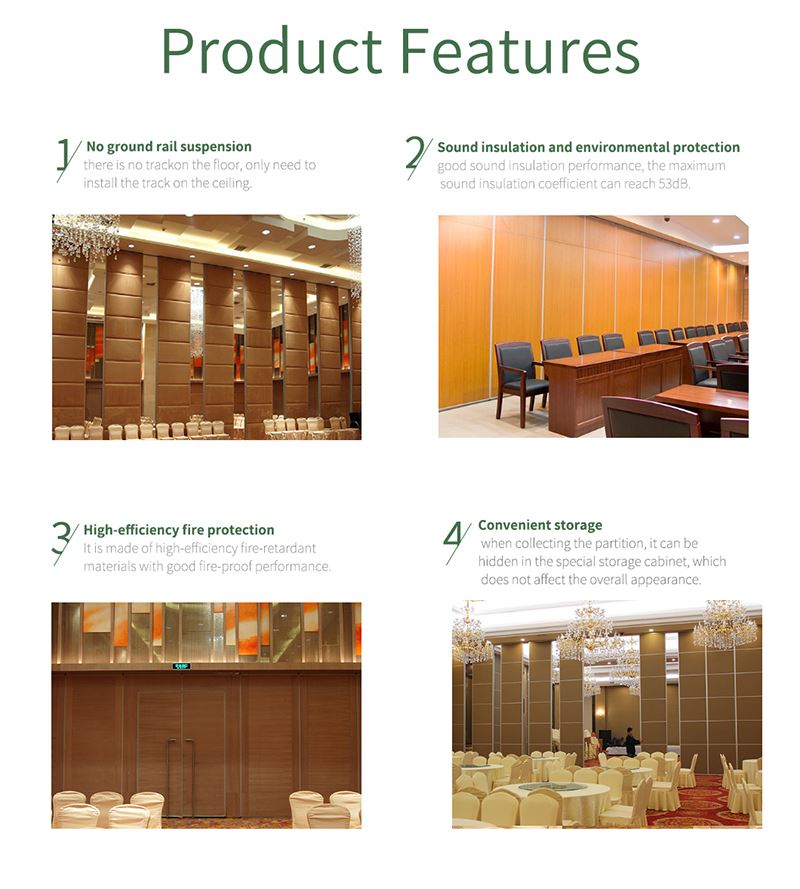

| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |

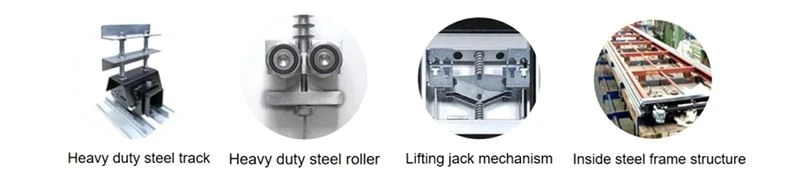

| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller |

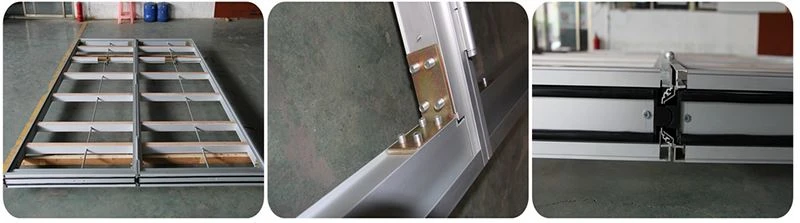

| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |

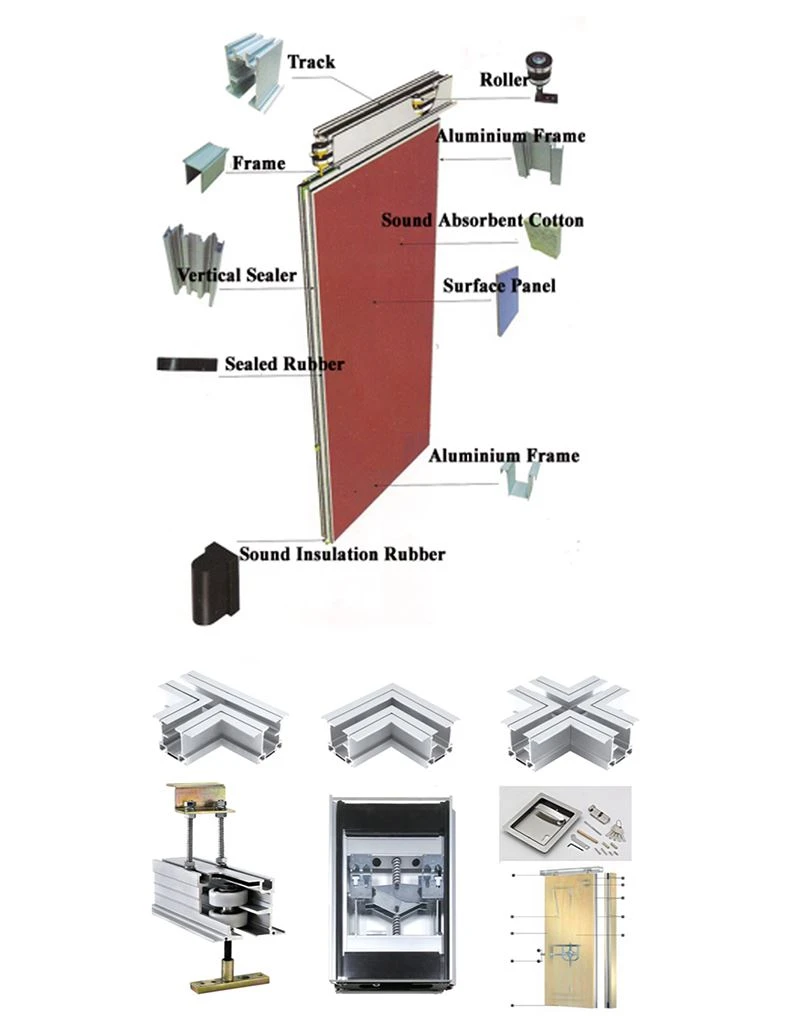

The panel is designed in tongue-and-groove mode and its surface finish can be made of precise laminated board, pre-finished wood veneer, fabric or other materials specified by customers. The movable partition wall is also equipped with vertical and horizontal external frame fabricated by extruded aluminum profiles. The retractable vinyl pressure seals installed on the top and bottom of panel can tightly seal the gaps between the panel and the top and bottom tracks, helping to form a sealed and balanced wall which blocks the propagation of sound wave. The sound insulation effect can reach up to 35 to 58 dB.
What’s more, we design a simple lock-up configuration. The dismountable operating handle enabling 180°rotation controls the extrusion and retraction of retractable pressure seals.
Ultra high 100 type
Ultra-high Movable Partition is designed for movable partition as
high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type
partition is top hung system, hanging wheel sliding in the track
smoothly and stability without vibration, the 17 meters high partition
can easily moved even being pushed at waist-high. With build-in oriental
device, the panel can make a turn automatically as sliding in the
straight rail.
Features
Load bearing of each meter is more than 2000 KGS
Each pulley bearing more than 1500 KGS
Easily moved even being pushed at waist-high
The panel can make a turn automatically as sliding in the straight rail
1.What should I don on site?
A
beam(truss) should built on site for track installation.The min
distance leaving for track installation from false ceiling to top
ceiling is 200mm.
2. How to install?
We
will provide the installation manual and video guiding the installation
job. We can also dispatch the installation engineer supervising the
installation as request.
3. What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
4. What is Procurement procedure?
Firstly,
send us the shop drawings(if the shop drawings is not available, you
can tell us the height from false ceiling to finished floor and width
from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
5.Is the movable partition acoustic (soundproof)?
Yes,
our movable wall system is soundproof. We have different acoustic
material fillings and various sound absorbing panels to achieve
different acoustic ratings.
The partition panels comes in different
thickness, and different acoustic rating from 36db to 50 db depending
upon the project requirement. We can provide panels with raw MDF or any
type of finish such as laminate, veneers, white boards, fabric,
pin-boards, painted surfaces etc to compliment your bilding environment
and decor.
6. How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
For more information, please feel free to contact us.
